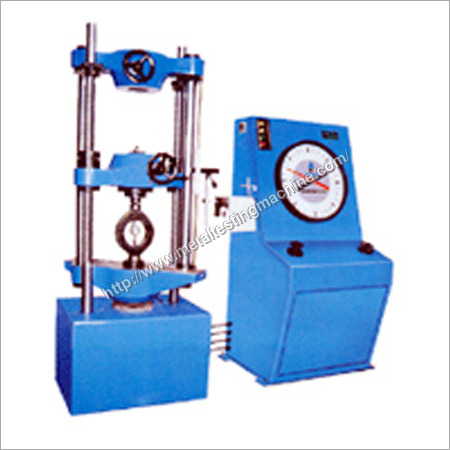

Mechanical Universal Testing Machine Offering our clients with universal testing machines for all types of technical testing purposes. This machine has the capacity to deliver analogue results which are easy to understand. Having technically advanced features to test tensile, compression, bending and shear tests on metals and other materials, both in the form of test pieces and as finished products. This machine is built so that it can carry heavy loads. This nachine is free from abrasion and corrosion thus offers durability and strength.
TECHNICAL SPECIFICATIONS
Model
|
UTM - 100
|
UTM - 200
|
UTM - 400
|
UTM - 600
|
UTM - 1000
|
Capacity KN
|
100
|
200
|
400
|
600
|
1000
|
1ST Range KN
Least Count KN |
0-100
0.2
|
0-200
0.4
|
0-400
0.8
|
0-600
1
|
0-1000
2
|
II nd Range KN
Least Count KN |
0-50
0.1
|
0-100
0.2
|
0-200
0.4
|
0-300
0.5
|
0-500
1
|
IIIrd Range kN
Least Count kN |
0-25
0.05
|
0-50
0.1
|
0-100
0.2
|
0-120
0.2
|
0-250
0.5
|
IV th Range KN
Least count KN |
0-10
0.02
|
0-20
0.04
|
0-40
0.08
|
0-60
0.1
|
0-100
0.2
|
| Max. Tensile Clearance or full decended piston position mm |
50-700
|
50-700
|
50-700
|
50-800
|
50-850
|
| Max. clearance for compression test mm |
0-700
|
0-700
|
0-700
|
0-800
|
0-850
|
| Distance between columns mm |
450
|
500
|
500
|
600
|
750
|
| Piston stroke mm |
150
|
200
|
200
|
250
|
250
|
| Max Straining speed of No load mm/min |
300
|
150
|
150
|
100
|
80
|
| Power supply |
3phase
|
440 volts
|
50 cycles
|
A.C.
|
-
|
| H.P. (Total) |
1.5
|
1.5
|
2.5
|
2.5
|
4
|
Overall Dimensions
(Approx) mm |
1950x800x1850
|
2000x800x1900
|
2100x800x2060
|
2200x800x2400
|
2350x800x2700
|
| Weights in kgs.(Approx) |
1300
|
1400
|
2300
|
3200
|
5100
|
Standard Accessories
FOR TENSION TEST
Clamping jaws for round
specimen diameter (mm) |
10 -20
20 -30
|
10 -20
20 -30
|
10 -25
25 -40
|
10 -25
25 -40
40 -55
|
10 -25
25 -45
45 -70
|
Clamping jaws for flat
specimens thickness (mm)
width
|
0 - 10
10 - 20
50
|
0 - 10
10 - 20
50
|
0 - 15
15 - 30
65
|
0 - 15
15 - 30
70
|
0 - 22
22 - 44
44 - 65
70
|
FOR COMPRESSION TEST
Pair of compression plates of diameter (mm)
|
120
|
120
|
120
|
120
|
160
|
FOR TRANSVERSE TEST
Table with adjustable rollers Width of rollers (mm)
|
160
|
160
|
160
|
160
|
160
|
Diameter of rollers (mm)
|
30
|
30
|
30
|
50
|
50
|
Maximum Clearance between supports
|
500
|
500
|
500
|
600
|
800
|
Radius of punch tops (mm)
|
6,12
|
6,12
|
12,16
|
16,22
|
16,22
|
|
